Aanbieding
  • Datavideo TLM-170VM 17" ScopeView Production Monitor-Pull-Out
  • Datavideo TLM-170VM 17" ScopeView Production Monitor-Pull-Out
  • Datavideo TLM-170VM 17" ScopeView Production Monitor-Pull-Out
Datavideo
2100-0194

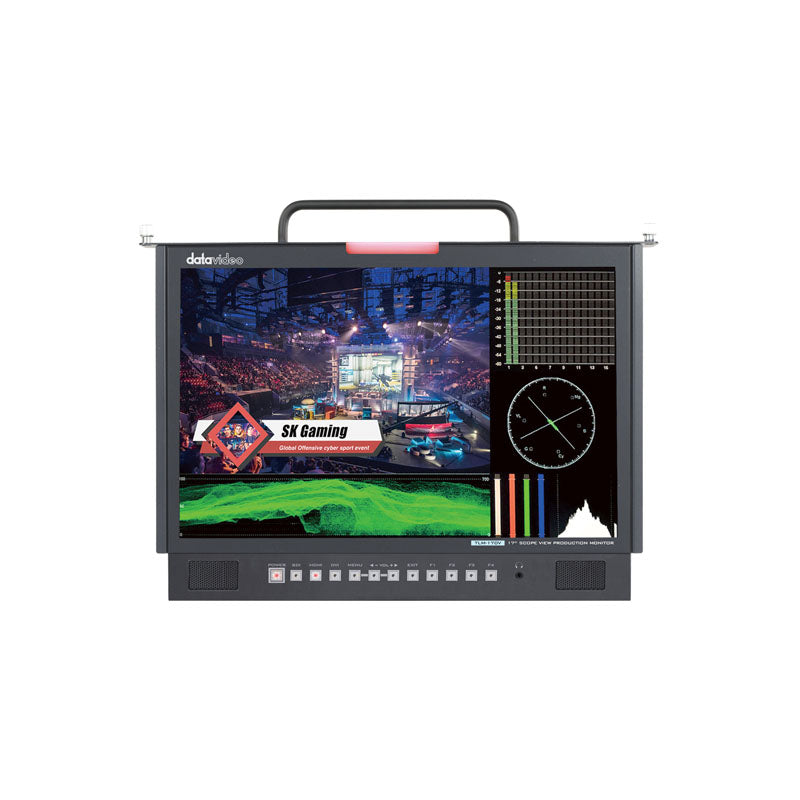

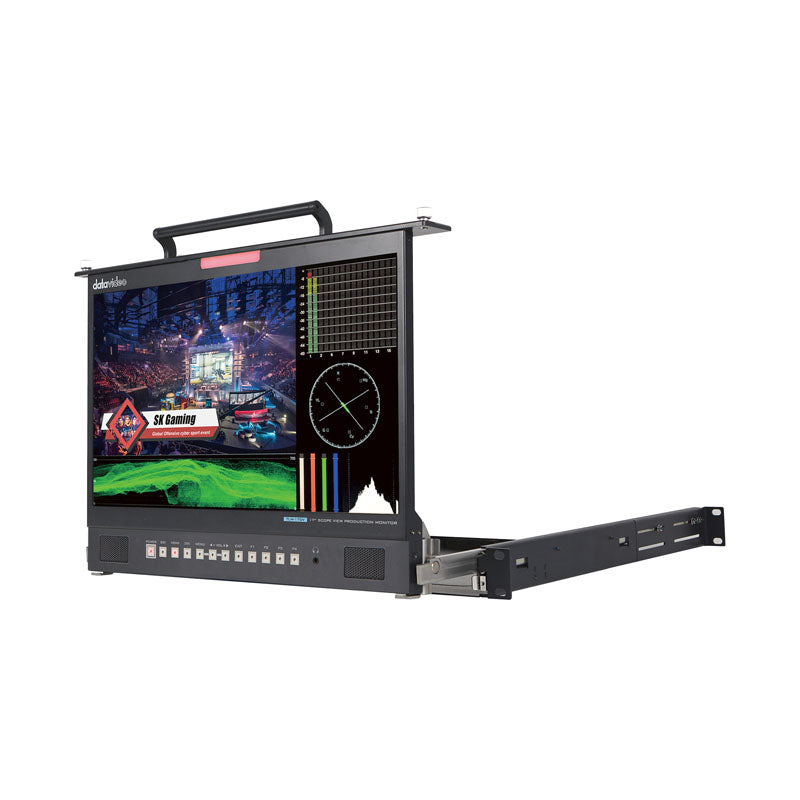

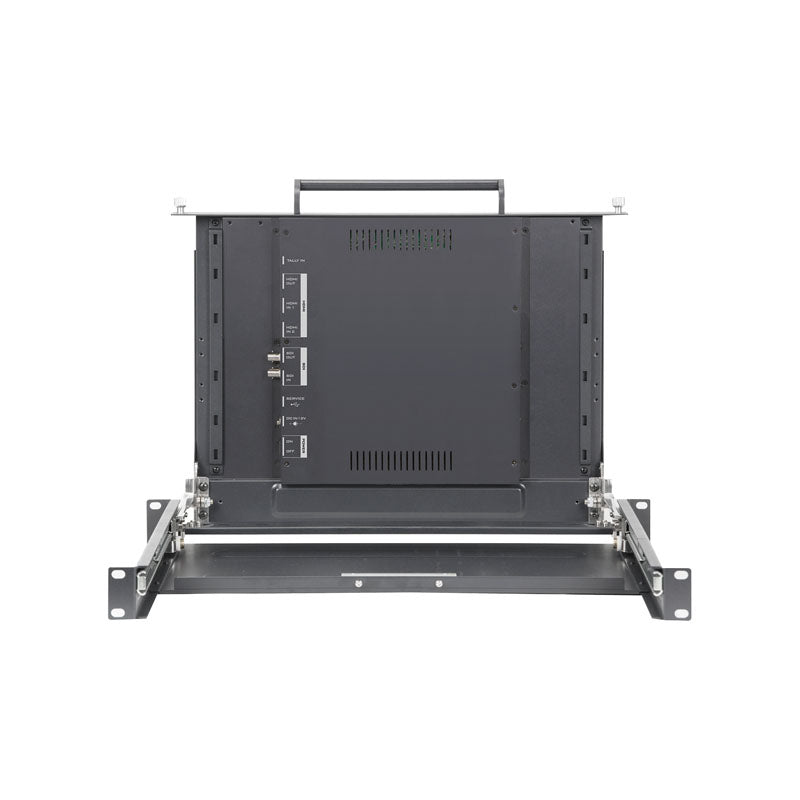

Datavideo TLM-170VM 17" ScopeView Production Monitor-Pull-Out

Op voorraad
  • €1.676,00 (excl. btw)
    €2.027,96 incl. btw
  • €2.095,00
  • - 0%

17.3'' Full HD Pull-Out Monitor

Supports 3G/HD/SD 1920x1080 panel resolution.

Supports multiple input and output configurations

1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through.

SDI, HDMI cross conversion

The TLM-170VM can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various built-in functions

Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.

Tally light

Tally light included. Best use for live production.

Model Number

TLM-170VM

Screen

17.3" LED Backlit

Chassis

1RU Pull-Out

Resolution

1920x1080

Viewing Angle

(H) +89/-89°
(V) +89/-89°

Luminance/Contrast

300cd/m²
700:1

Video Inputs

1x 3G/HD/SD-SDI
2x HDMI

Loop Through

1x 3G/HD/SD-SDI

Supported Input Resolutions

1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)

Aspect Ratio

16:9, 4:3

Aspect Marker

YES

Safty Marker

YES

Tally LED

Live (Red)
Cued (Green)

Audio In/Out

2x Speaker
1x Headphone Jack

Special Features

SDI and HDMI cross conversion,
Support column (YRGB peak),
time code, waveform,
vector scope & audio level meter,
peaking focus assist,
zoom, pix to pix,
underscan, check field

Dimension (WxHxD)

485.8 x 492.7 x 44.5mm

Weight

6.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 21.9W

  • 1 x TLM-170V product
  • 1 x AD Switch DC 12V
  • 4 x Screw φ4.0*6m/m
  • 8 x Screw φ3.0*6m/m
  • 8 x Screw M5 x 10mm
  • 5 x Cable tie
